With the 6K RED DRAGON® sensor, you can capture over 9x more pixels than HD. Unrivaled detail and impressive native exposure eclipse 35mm film in both latitude and image density. Industry leading specs distinguish the EPIC DRAGON as a model for image innovation, helming the evolution of digital cinema technology.

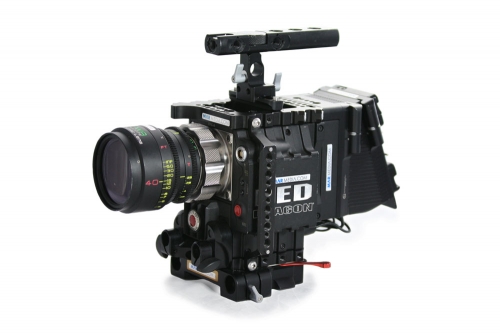

RED Dragon
Description
SENSOR
- 19 Megapixel RED DRAGON®
PIXEL ARRAY
- 6144 (h) x 3160 (v)
MAX IMAGE AREA
- 6144 (h) x 3160 (v)
DYNAMIC RANGE
- 16.5+ stops
S/N RATIO
- 80 dB
LENS COVERAGE
- 30.7 mm (h) x 15.8 mm (v) x 34.5 mm (d)
MAX DEPTH OF FIELD
- Equivalent to S35mm (Motion)/APS-H (Still) lenses
PROJECT FRAME RATES
- 23.98, 24, 25, 29.97, 47.96, 48, 50, 59.94 fps, all resolutions
REDCODE® Compression choices of 18:1 to 3:1, 12 and 16-bit RAW :
- Compression choices of 18:1 to 3:1
- 1-100 fps @ 6K
- 1-120 fps @ 5K, 4.5K
- 1-150 fps @ 4K
- 1-200 fps @ 3K
- 1-300 fps @ 2K
ACQUISITION FORMATS
- 6K RAW (2:1, 2.4:1), 5K RAW (Full Frame, 2:1, 2.4:1 and Anamorphic 2:1)
- 4.5K RAW (2.4:1)
- 4K RAW (16:9, HD, 2:1 and Anamorphic 2:1)
- 3K RAW (16:9, 2:1 and Anamorphic 2:1)
- 2K RAW (16:9, 2:1 and Anamorphic 2:1)
- 1080p RGB (16:9)
- 720p RGB (16:9)
DELIVERY FORMATS
- 4K : DPX, TIFF, OpenEXR (REDRAY® via optional encoder)
- 2K : DPX, TIFF, OpenEXR (REDRAY via optional encoder)
- 1080p RGB or 4:2:2, 720p 4:2:2 : Quicktime, JPEG
- Avid AAF, MXF. 1080p 4.2.0, 720p 4:2:0 : H.264, .MP4
PROGRAM OUTPUT
- HD-SDI Clean Feed
- SMPTE Timecode, HANC Metadata, 24-bit 48Khz Audio
MONITOR OUTPUT
- HD-SDI and HDMI with Frame Guides and Look Around
- 2K RGB, 1080p RGB or 4:2:2, 720p RGB or 4:2:2
- SMPTE Timecode, HANC Metadata, 24-bit 48Khz Audio
MONITORING OPTIONS
- RED Touch 5.0″” LCD
- RED PRO 7″” LCD
- RED Touch 7.0″” LCD
- RED Touch 9.0″” LCD
- BOMB EVF (LCOS)
- RED BOMB EVF (OLED)
DIGITAL MEDIA
- (SSD) MODULE (64, 128, 256, 512GB Media)
AUDIO
- 2 channel, uncompressed, 24-bit, 48kHz.
- Optional 4 channel, and AES / EBU digital audio.
REMOTE CONTROL
- Wireless, Ethernet, RS232, GPI Trigger
CONSTRUCTION
- Aluminum Alloy
WEIGHT
- 5 lbs (Body only)
OPERATING TEMPERATURE
- 0°C to 40°C (32°F to 104°F)
STORAGE TEMPERATURE
- -20°C to 50°C (-4°F to 122°F)
